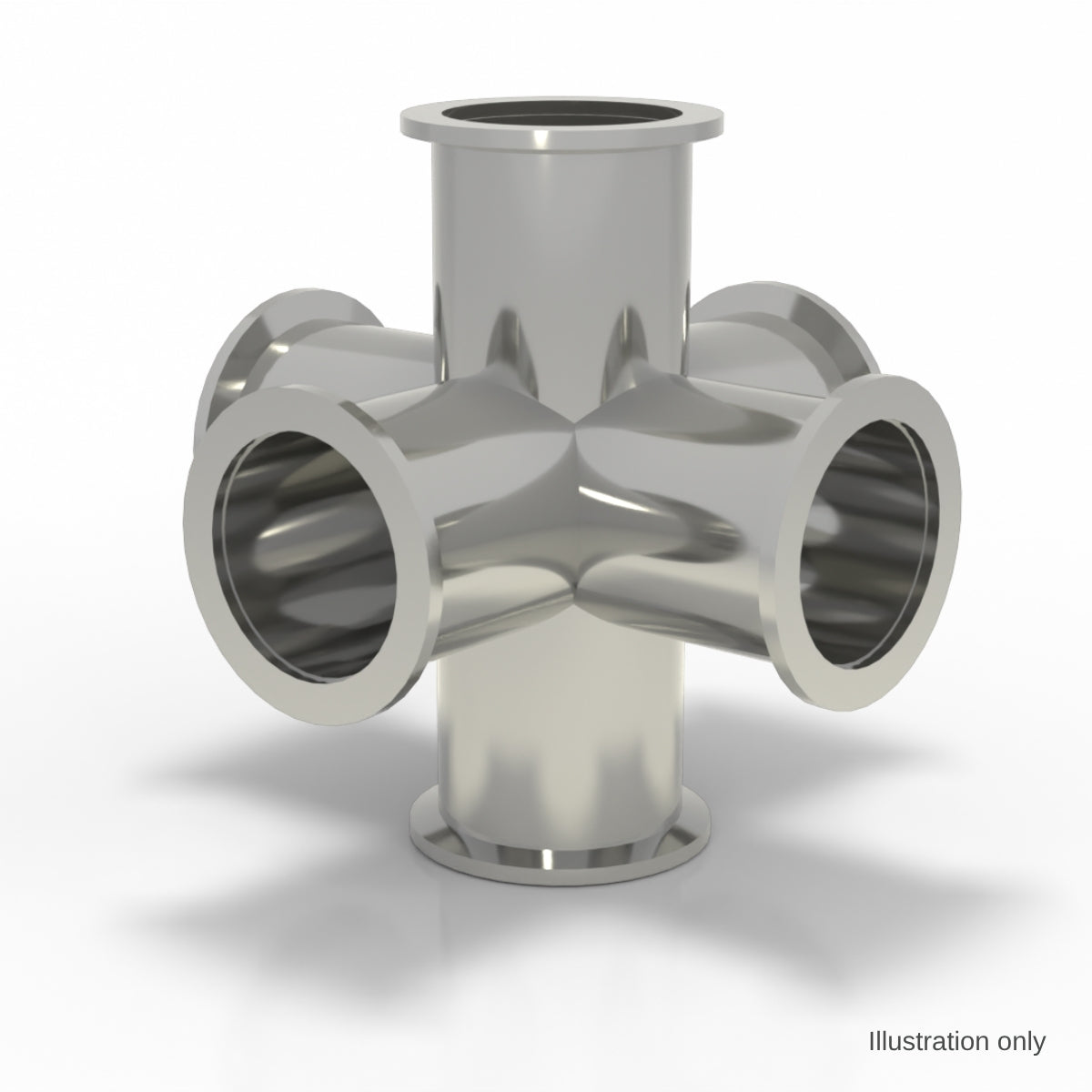

KF 40 6way Cross 304

SKU: 1KFP640402
Connection type
ISO-KF
Material
304
Nominal diameter
40
In stock
Delivery within 2 - 5 workdays
This store is available to registered business customers only.

Purchasing is possible after account approval. Don’t have an account yet? Click here to request an account.

ISO-KF 6-way crosses are designed to connect six vacuum lines in foreline and high-vacuum piping systems. All six ports have the same nominal flange size. Compatible with ISO 2861.

Vacuum range: atmosphere to 1 × 10⁻⁸ mbar
Temperature range: 0 to +150 °C, depending on the sealing material

Material: 304 Stainless Steel
